| Place of Origin: | China |
| ชื่อแบรนด์: | HRT |
| ได้รับการรับรอง: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2001 |
| Minimum Order Quantity: | 5000 PCS |
|---|---|
| ราคา: | Negotiated |
| Packaging Details: | Carton / Paper pots |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 1000 pcs per day |
| Product Name: | A2001 Wafer | Pitch: | 2.00mm |
|---|---|---|---|
| The Number of pin: | 02PIN ~ 16PIN | Material: | Wafer : PA6T, PIn: brass, Gold-flash |
| Row: | single | Fire-protection rating: | UL 94V-0 |
| Mates with: | A2001 series housing | ||
| แสงสูง: | Wafer Connector 2.0mm,Board In Connector |
||

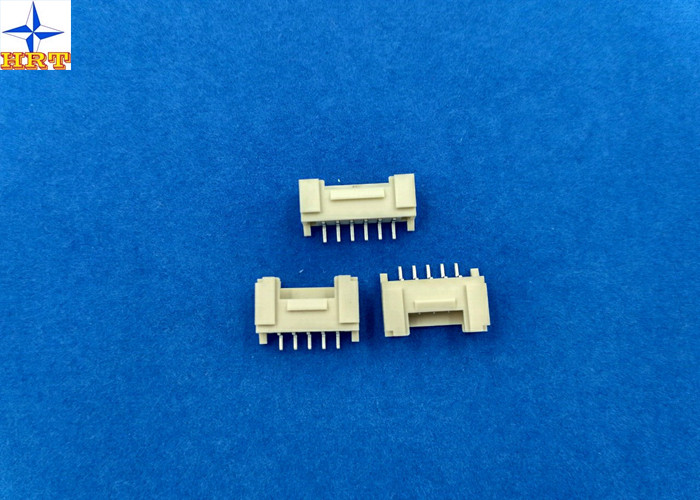

wire to board connector pitch 2.00mm Wafer connector brass/ Gold-flash pin PA6Twafer
Description:
1.A2001series Wqafer have A2001WV-NP A2001WR-NP A2001WVB-NP
2Waferused materials: PA66, Halogen Free , Fire-protection rating is UL 94-V0. Minimum packing quantity is 1000pcs/bag.
3. single row Wafer we have 2P~ 16P ,The daily production capacity is 30 to 50 KPCS.
4.Terminals are stamped by Phosphor Bronze, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we calling A2001-TPe, Gold-plated we calling A2001-GPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.
5.Terminals' wire range :AWG #26--#30,insulation OD is1.30mm(Max).
| Test Description | Procedure | Requirement |
|
Contact Resistance |
Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 20mΩ (Max.) |
| Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 1000MΩ (Min.) |
| Dielectric Withstanding Voltage | Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)) | No Breakdown. |
| Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. | 5mΩ (Max.) |
| Current rated | 2A AC/DC maximum |
| Voltage rated | 100V AC/DC |
| Withstand voltage | 800V AC/minute |
| Insulation resistance | 1000MΩ min |
| Contact resistance | 10MΩ max |
| Operating temperature | -25 - 85°C |
