One Row Battery Terminal Connectors 3.96mm With Brass / Phosphor Bronze Side entry Housing

ประเทศจีน One Row Battery Terminal Connectors 3.96mm With Brass / Phosphor Bronze Side entry Housing ผู้ผลิต
One Row Battery Terminal Connectors 3.96mm With Brass / Phosphor Bronze Side entry Housing ผู้ผลิต One Row Battery Terminal Connectors 3.96mm With Brass / Phosphor Bronze Side entry Housing ผู้ผลิต One Row Battery Terminal Connectors 3.96mm With Brass / Phosphor Bronze Side entry Housing ผู้ผลิต

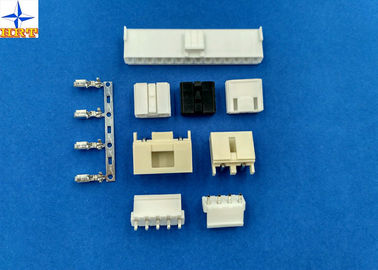

ภาพใหญ่ :  One Row Battery Terminal Connectors 3.96mm With Brass / Phosphor Bronze Side entry Housing

รายละเอียดสินค้า:

Place of Origin: Dongguan, China(mainland)
ชื่อแบรนด์: HRT
ได้รับการรับรอง: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A3961HA-NP

การชำระเงิน:

Minimum Order Quantity: 5000 pcs
ราคา: USD0.005 to 0.008 per pcs
Packaging Details: Bag with outside paper carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28 million pcs per month
รายละเอียดสินค้า
Circuits: 2 pins to 15 pins Mating lock: With
Terminal material: Brass or phosphor bronze Wire Insulation Diameter: AWG18# to 22#
Finish terminal: tin-plated Suitable terminals: 3.00mm Max
แสงสูง:

PCB Battery Connector

,

Male Header Connectors

1, The product specification



Through the next datasheet, you will have a good understanding for our product. Besides, the interrelated

product of this part like terminals, wafer(right angle or vertical) can be offered by us too.



 Basic size information
Color White
Material Nylon66
Row Single
Pitch 3.96mm
Flammability UL94V-0
Wire range A3961T series
Terminal processing method E-stamping before tin-plated
Part No. A3961HA-NP

                                                        Electrical properties
Current Rating 7A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 1000mΩ min
Withstanding Voltage 1500V AC/minute

                                                      Mechanical properties
Temperature range -25℃ to 85 ℃
           Other information please kindly check the following picture.



2, Related drawing and report



You can get more characteristics from below picture, through this, you can know our product very clearly.

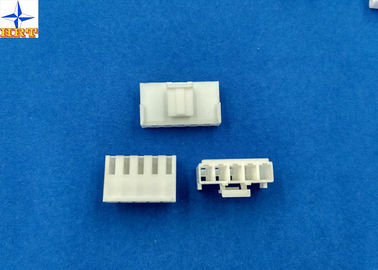

One Row Battery Terminal Connectors 3.96mm With Brass / Phosphor Bronze Side entry Housing

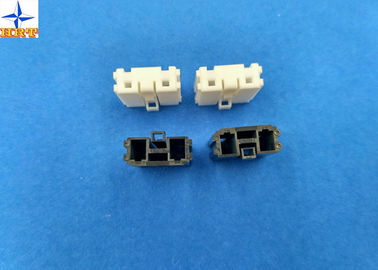

One Row Battery Terminal Connectors 3.96mm With Brass / Phosphor Bronze Side entry Housing

Environmental Performance And Others



Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

Insulation Resistance 1000MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3

6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.

6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.

Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial Circuits At Initial
Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
Single 1.00 0.20 09 7.50 2.20
02 2.00 0.40 10 8.00 2.50
03 3.00 0.60 11 9.00 2.80
04 4.00 0.80 12 9.50 3.10
05 4.50 1.00 13 10.00 3.40
06 5.50 1.30 14 11.00 3.70
07 6.00 1.60 15 11.50 4.00
08 7.00 1.90



3, FAQ:
Q1: Are you manufacturer or trading company?
A: We are a manufacturer with 12 years experience professional manufacturing company which specializes in producing, research and development, sales of variety of electronic connectors, terminals, wafer etc.

Q2: How to control the quality of your products?
A: Quality is life of our company. The QC staff control each procedure as per ISO9001 program. All part are100% tested before shipping.

Q3: Where is your factory located, and how can we visit there?
A: Our company is located in Dongguan city, Guangdong Province, China. It is close to shenzhen

Q4: How can I get the sample?
A: The sample is for free,but the transportation fee will be beared by customers.

Q5: What are your products applied to?
A: Our products are applied to automotive use, conmmunication equipment, industrial use, household appliance, electronics, etc.
