| Place of Origin: | China |
| ชื่อแบรนด์: | HRT |
| ได้รับการรับรอง: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A3961-2 |
| Minimum Order Quantity: | 5000 PCS |
|---|---|
| ราคา: | Negotiated |
| Packaging Details: | Carton / Paper pots |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 1000 pcs per day |
| Product Name: | A3961-2 Housing | Pitch: | 3.96mm |
|---|---|---|---|
| The Number of pin: | 02PIN ~15PIN | Material: | HSG: PA66 |
| Row: | single | Fire-protection rating: | UL 94V-0 /UL94-V2 |
| Color: | black white | Mates with: | A3961 series wafer |
| suitable: | A3961 sreies terminal | ||
| เน้น: | Circuit Board Connections,Pcb Connectors Wire To Board |
||

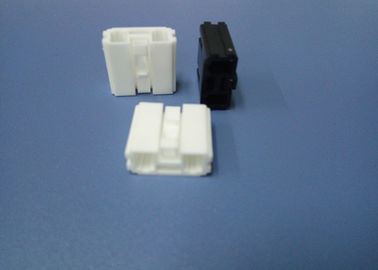

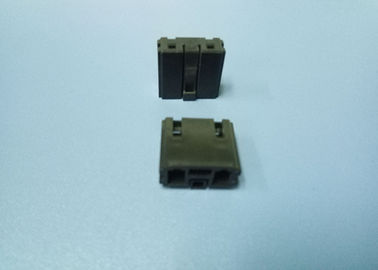

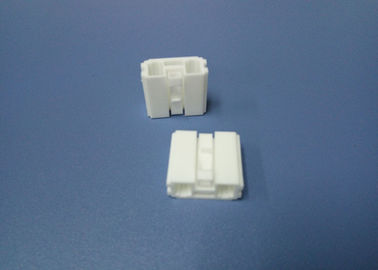

Circuit board Wire connectors pitch 3.96mm 02p to 15p PA66 housing
Description:
1. A3961-2 series housing have A3961H-2-NP (suitable A3961 series terminal)
2, Housing used materials: PA66, Halogen Free , Fire-protection rating is UL 94-V0 94-V2 . Minimum packing quantity is 1000pcs/bag.
3. Single row housing we have 2P~15P,The daily production capacity is 30 to 50 KPCS.
| Test Description | Procedure | Requirement |
|
Contact Resistance |
Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 20mΩ (Max.) |
| Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 1000MΩ (Min.) |
| Dielectric Withstanding Voltage | Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)) | No Breakdown. |
| Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. | 5mΩ (Max.) |
Electrical:
| Current rated | 7A AC/DC maximum |
| Voltage rated | 250V AC/DC |
| Withstand voltage | 1500V AC/minute |
| Insulation resistance | 1000MΩ min |
| Contact resistance | 10MΩ max |
| Operating temperature | -25 - 85°C |
Machining center
Quality:
The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
