1.20mm pitch Molex 78172 Wire to Board Housing for PAD Mobile hone Battery connectors

ประเทศจีน 1.20mm pitch Molex 78172 Wire to Board Housing for PAD Mobile hone Battery connectors ผู้ผลิต
1.20mm pitch Molex 78172 Wire to Board Housing for PAD Mobile hone Battery connectors ผู้ผลิต 1.20mm pitch Molex 78172 Wire to Board Housing for PAD Mobile hone Battery connectors ผู้ผลิต 1.20mm pitch Molex 78172 Wire to Board Housing for PAD Mobile hone Battery connectors ผู้ผลิต 1.20mm pitch Molex 78172 Wire to Board Housing for PAD Mobile hone Battery connectors ผู้ผลิต 1.20mm pitch Molex 78172 Wire to Board Housing for PAD Mobile hone Battery connectors ผู้ผลิต

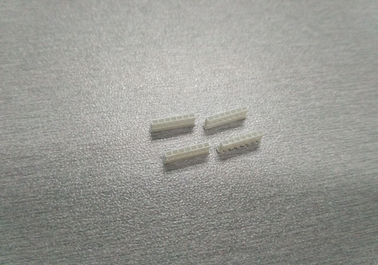

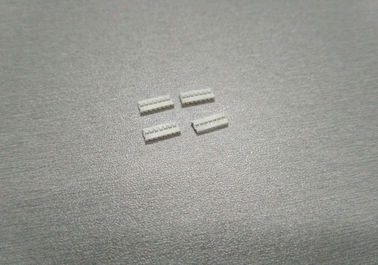

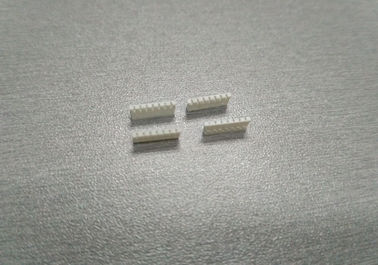

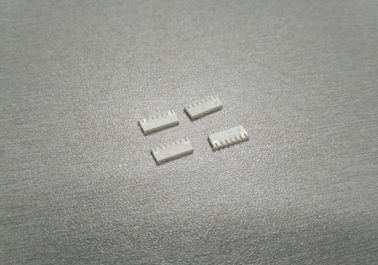

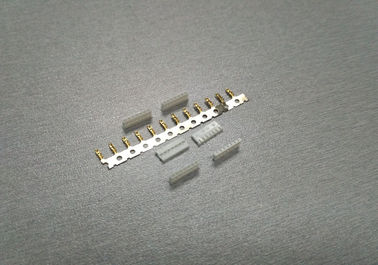

ภาพใหญ่ :  1.20mm pitch Molex 78172 Wire to Board Housing for PAD Mobile hone Battery connectors

รายละเอียดสินค้า:

Place of Origin: Dongguan, China(mainland)
ชื่อแบรนด์: HRT
ได้รับการรับรอง: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: 0010.A1201H-7P

การชำระเงิน:

Minimum Order Quantity: 5000 pcs
ราคา: Negotiation
Packaging Details: Bag with outside carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 1000K pcs per month
รายละเอียดสินค้า
color: white pitch: 1.20mm
material: PA66 UL94V-0; LCP UL94V-0(HF) wire range: AWG28# to 32#
Environmental Protection Class: Halogen Free(HF)
แสงสูง:

Male Header Connectors

,

6 Pin Connector

Gold-Plated Terminal board to board connector Pitch 1.0mm Housing With PA66 Materials



1, The specification of the product including basic size information, electrical and mechanical properties.



 1. Basic information:
Color: White
Pitch: 1.20mm
Circuits: 2 to 8 positions
Row no.: Single
Insulation OD: 0.80mm
Packaging type: Bag
Wire range: AWG32# to 28#
Insulation material: LCP,UL94V-0; PA66,UL94V-0
Matched parts: A1201 series wafer
Application: Signal, wire to board
Terminal materials: Phosphor bronze
Finish terminal: Gold-flash type
Terminal package: 20K pcs/reel
Terminal processing method: E-stamping before tin-plated

2. Electrical characteristic:
Current rating: 1A AC, DC
Voltage rating: 125V AC, DC
Contact resistance: 20mΩ
Insulation resistance: 100mΩ
Withstanding voltage: 500V AC/minute


3. Mechanical characteristic:​​
Temperature range: -25 - 85°C
Terminal insertion force: 1.50kgf (max)
Terminal/housing retention force: 0.40kgf (min)
Pin retention force: 0.50kgf (min)



2, Related drawing and report

                                                      Drawing of product

1.20mm pitch Molex 78172 Wire to Board Housing for PAD Mobile hone Battery connectors



                                                                                 Testing report

This document is the property of Xin Pei Enterprise and delivered on the express condition that it is not be disclosed, reproduced or used, in whole or in part, for manufacture or sale by anyone other than Xin Pei Enterprise.

Without its prior consent, and that no right is granted to disclose or to use any information in this document.



1. Scope

This specification covers the requirements for product performance of 1.20mm pitch wire to board

connectors series.



2. Construction,Dimensions,Material & Plating

See the attached drawings





3. Ratings & Applicable Wires



Item Standard
Rated Voltage (Max.) 50V AC/DC
Rated Current (Max.) And Applicable Wires AWG#28 1.5A AC/DC
AWG#30 1.0A AC/DC
Ambient Temperature Range -25℃ ~ +85℃*

*: Including terminal temperature rise





4. Electrical Performance



Test Description Procedure Requirement
4-1



Contact Resistance



Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 100MΩ (Min.)
4-3 Dielectric Withstanding Voltage Mate connectors, apply 500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)



5. Mechanical Performance



Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#28 0.9kgf (Min)
AWG#30 0.7kgf (Min)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 0.40kgf (Min.)
5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 0.50kgf (Min.)
5-6 Durability When mated up to 10 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance:40mΩ (Max.)
5-7 Vibration

Amplitude: 1.52mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Discontinuity 1 μsec.(Max.)

5-8 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





6. Environmental Performance And Others



Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Insulation Resistance 100MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3

6-5 Temperature Cycling

10 cycles of:

a) -25℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.

6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
6-9 Solderability

Soldering Time: 5±0.5 sec.

Solder Temperature: 245±5℃

Solder Wetting 95% of immersed area must show no voids, pin holes
6-10 Resistance to Soldering Heat

When reflowing

Refer to paragraph 8

Solder iron method

Soldering Time: 5±0.5 sec.

Solder Temperature: 370℃ ~ 400℃

Appearance No Damage.



7. Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits Insertion (Max.) Withdrawal (Min.)
1st 3rd 10th
02 1.84 0.41 0.15 0.12
03 2.14
04 2.45
05 2.76
06 3.06





3, FAQ

Q1: Are you manufacturer or trading company?
A: We are a manufacturer with 12 years experience professional manufacturing company which specializes in producing, research and development, sales of variety of electronic connectors, terminals, wafer etc.

Q2: How to control the quality of your products?
A: Quality is life of our company. The QC staff control each procedure as per ISO9001 program. All part are100% tested before shipping.

Q3: How can I get the sample?
A: The sample is for free,but the transportation fee will be beared by customers.



Q4: What are your products applied to?
A: Our products are applied to automotive use, conmmunication equipment, industrial use, household appliance, electronics, etc.





4, Our product application range
Please kindly check the below picture, you can know our main partner and customer directly. You can make wise choice like them. Our products are mainly used in wire to wire connecting, power, Inside of some machines and some appliances, or power of PCB board. By the way, all of this series prodcut are complied with REACH, UL, RoHS srandard. In order to protect the evironment furthur, some parts are halogen free.

Single Row Circuit Board Connection , White PCB Wire Connector PA66 Materials





5, Delivery & Payment Way

We can offer multiple delivery way for you, it will let you to recieve our part in a short time. Besides, flexible payment terms are available to save the commision charges both for us.

Single Row Circuit Board Connection , White PCB Wire Connector PA66 Materials



                                                                        Payment Policy

Total value of order(Currency: USD ) Suggested payment terms
Less than USD350 PayPal or Wester Union

Between USD350 and USD500 Western Union, TT

Between USD500 and USD5000 TT

Over USD5000 TT

The commision fee of TT/PayPal/ Letter of credit will be shared by us together.
