Light Yellow LCP 1.25mm Pitch Connector , Wire To Board Terminal Connector One Row

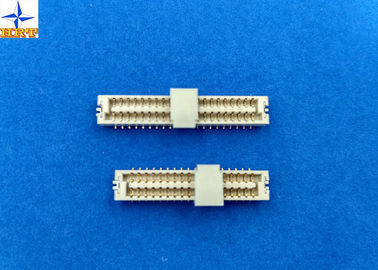

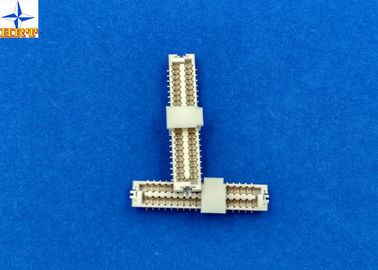

ภาพใหญ่ : Light Yellow LCP 1.25mm Pitch Connector , Wire To Board Terminal Connector One Row

รายละเอียดสินค้า:

Place of Origin:	Dongguan, China(mainland)
ชื่อแบรนด์:	HRT
ได้รับการรับรอง:	ISO9001/ ISO14001/UL/RoHS/REACH
Model Number:	A1257WVA-S-NP

การชำระเงิน:

Minimum Order Quantity:	5000 pcs
ราคา:	USD0.001 to 0.005 per pcs
Packaging Details:	Tube(pipe) with outside paper carton
Delivery Time:	5 to 8 working days after payment checked
Payment Terms:	TT, Western Union, PayPal, L/C
Supply Ability:	28 million pcs per month

ติดต่อ

รายละเอียดสินค้า

สี:	สีเหลืองอ่อน	ขว้าง:	1.25มม
วัสดุเวเฟอร์:	LCP, UL94V-0	ช่วงลวด:	AWG32# ถึง 28#
ประเภทบรรจุภัณฑ์:	กระเป๋า	ที่อยู่อาศัยที่เหมาะสม:	A1257HA ซีรีส์แถวเดียว
แสงสูง:	ขั้วต่อเวเฟอร์ 2.0 มม. , ขั้วต่อตัวเรือน , ขั้วต่อพิทช์ LCP 1.25 มม

Light Yellow LCP 1.25mm Pitch Connector , Wire To Board Terminal Connector One Row

1, Detailed specification of product:

Detailed information

Basic information	Type	Wafer connector
	Gender	Female
	Circuits	2 to 20 positions
	Insulation O.D.	0.80mm(max)
	Mating lock	With
	Pin materials	Brass or gold-flash
	Solder tabs	Brass/Gold flash
	Wafer material	LCP,UL94V-0
	Cap	Nylon6T,UL94V-0
	Matched housing	A1257HB single row series
	Mounting type	Right angle
	Application	Signal, wire to board
	Terminal materials	Phosphor bronze
	Finish terminal	Tin-plated or gold-flash type
	Terminal Package	15K pcs/reel
	Terminal processing method	E-stamping before tin-plated

Electrical properties	Current Rating	1A AC, DC
	Voltage Rating	50V AC, DC
	Contact Resistance	30mΩ Max
	Insulation Resistance	100mΩ Min
	Withstanding Voltage	500V AC/minute

Mechanical properties	Temperature range	-25℃ to 85 ℃
	Terminal Insertion Force	0.50kgf (Max.)
	Terminal/Housing Retention Force	0.50kgf (Min.)
	Pin Retention Force	0.50kgf (Min.)

Other information please kindly check the following picture.

2, Introduction for this series products

Please kindly notice these series product, you can buy it as a set, then we will offer you reasonable price.

A1257 series product
Terminal	A1002-T

Housing	Dual housing	A1257HA-2XNP
	Single housing	A1257HB-NP

Wafer	Single row type	A1257WRB-S-NP
	Dual rows type	A1257WVA-SF-2XNP

3, Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to know this series parts clearly.

Drawing of dimension

Light Yellow LCP 1.25mm Pitch Connector , Wire To Board Terminal Connector One Row

6. Environmental Performance And Others

Test Description		Procedure	Requirement
6-1	Temperature Rise	Carrying rated current load.(Based upon UL 498)	30℃(Max.)
6-2	Heat Resistance	85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)	Appearance No Damage. Contact Resistance 40mΩ (Max.)
6-3	Cold Resistance	-25±3℃,96 hours (Based upon JIS C0020)	Appearance No Damage. Contact Resistance 40mΩ (Max.)
6-4	Humidity	Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)	Appearance No Damage. Contact Resistance 40mΩ (Max.) Insulation Resistance 10MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3
6-5	Temperature Cycling	5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025)	Appearance No Damage. Contact Resistance 40mΩ (Max.)
6-6	Salt Spray	Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
6-7	SO2 Gas	24 hours exposure to 50±5ppm. SO2 gas at 40±2℃.
6-8	NH3 Gas	40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.

7. Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits	At Initial
Circuits	Insertion (Max.)	Withdrawal (Min.)
Single	0.20	0.03
2X05	2.20	0.25
2X08	2.70	0.35
2X10	3.20	0.50
2X15	4.20	0.75
2X18	4.70	0.88
2X20	5.20	1.00
2X21	5.30	1.03
2X25	7.20	1.25
2X30	8.20	1.50

4, FAQ

Q:Do you allow multiple design per setup?
A:Yes.We accept OEM service and allow multiple design per setup.

Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed world, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).

Q: How is the goods packaged ?
A: Usually in vacuum packages and carton box.
