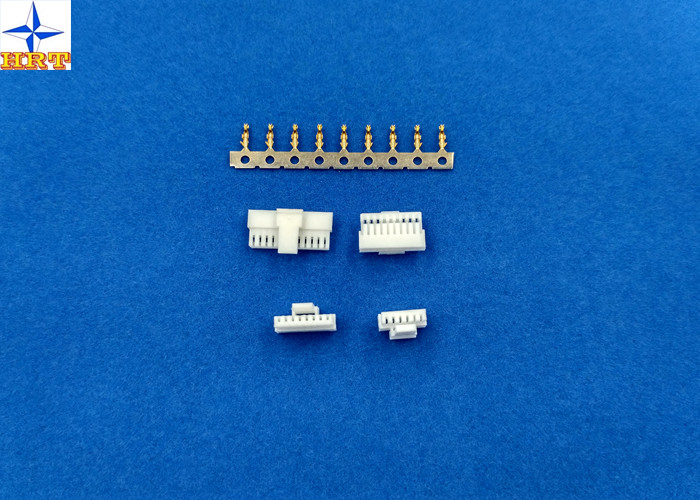

wire to board connector, 1.0mm pitch CI14 crimping wire housing with lock for PCB connector

wire to board connector, 1.0mm pitch CI14 crimping wire housing with lock for PCB connector

    • wire to board connector, 1.0mm pitch CI14 crimping wire housing with lock for PCB connector
    • wire to board connector, 1.0mm pitch CI14 crimping wire housing with lock for PCB connector
    • wire to board connector, 1.0mm pitch CI14 crimping wire housing with lock for PCB connector
  • wire to board connector, 1.0mm pitch CI14 crimping wire housing with lock for PCB connector

    รายละเอียดสินค้า:

    Place of Origin: Dongguan, China(mainland)
    ชื่อแบรนด์: HRT
    ได้รับการรับรอง: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1005HA-NP

    การชำระเงิน:

    Minimum Order Quantity: 5000 pcs
    ราคา: negotiated
    Packaging Details: Reel, Tube(Pipe), Tape, Bag or as required.
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    ติดต่อตอนนี้
    รายละเอียดสินค้า
    Color: white Pitch: 1.00mm
    Material: PA66 UL94V-0 Circuits: 4pins or 6pins
    Gender: female
    แสงสูง:

    Pcb To Wire Connectors

    ,

    Board To Wire Connectors



    1, Specification details for your reference



      Basic size information
    Circuits from 2pins to 20pins
    Suitable terminals A1005T series
    Mating lock with
    Wire range AWG28# to 32#
    Wire Insulation Diameter  0.80mm max.
    Part No. A1005HA-04P or A1005HA-06P

                                                              Electrical properties
    Current Rating 1A AC, DC
    Voltage Rating 50V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 100mΩ min
    Withstanding Voltage 500V AC/minute

                                                              Mechanical properties
    Temperature range -25℃ to 85 ℃
                               Other information please kindly check the following picture.





    2, Related drawing and report



    wire to board connector, 1.0mm pitch CI14 crimping wire housing with lock for PCB connector

    6. Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    Insulation Resistance 10MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3

    6-5 Temperature Cycling

    5 cycles of:

    a) -55℃ 30 minutes

    b) +85℃ 30 minutes

    (Based upon JIS C0025)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
    6-7 SO2 Gas

    24 hours exposure to 50±5ppm.

    SO2 gas at 40±2℃.

    6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
    6-9 Solderability

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 245±5℃

    Solder Wetting 95% of immersed area must show no voids, pin holes
    6-10 Resistance to Soldering Heat

    When reflowing

    Refer to paragraph 8

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.



    7. Actuator Insertion/Withdrawal Force

    [Unit : kgf]

    Circuits At Initial Circuits At Initial
    Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
    02 2.00 0.20 12 5.00 0.50
    03 2.00 0.20 13 5.00 0.50
    04 2.00 0.20 14 6.00 0.60
    05 3.00 0.30 15 6.00 0.60
    06 3.00 0.30 16 6.00 0.60
    07 3.00 0.30 17 7.00 0.70
    08 4.00 0.40 18 7.00 0.70
    09 4.00 0.40 19 7.00 0.70
    10 4.00 0.40 20 8.00 0.80
    11 5.00 0.50







    3, Our service

    Customizable specification drawing and material is avaiable.More than 12 years experience in conenctor, wire housing, wafer, etc. products samples is free, you just need pay for the freight. Because we have strict quality control systerm, so we are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth,BYD, LuXshare,etc.
